这款高性能散热管专为精密电子组件设计，结合了卓越的导热性能与高达 4 kV 以上的耐电压绝缘保护。其材料具备极佳的耐高温稳定性（最高可达 210°C）与符合 UL 94 V-0 标准的防火耐燃特性。产品完全符合 RoHS 环保规范，是二极管、三极管及各类功率组件进行散热与包覆绝缘的最佳选择。

English Description:

This high-performance Heat Dissipation Tube is specifically engineered for precision electronic components, combining excellent thermal conductivity with high-voltage insulation protection exceeding 4 kV. The material features exceptional high-temperature stability (up to 210°C) and UL 94 V-0 rated flame retardancy. Fully RoHS compliant, it is the ideal solution for the heat dissipation and insulation jacketing of diodes, transistors, and various power devices.

散热管：高效热管理与电气绝缘的卓越方案

在现代精密电子制程中，散热管是确保功率组件稳定运作的内核防护材料。立兴复合材料提供的硅胶散热管，具备卓越的高导热效率与高电压耐受性，能有效为电子组件提供散热路径，同时确保优异的电气绝缘与耐燃保护。

【为什么选择立兴散热管？】

• 优异的散热性能：导热系数达 0.8 ~ 1.0 W/m·K，能迅速传导电子组件产生的热量，防止过热失效。

• 高规格绝缘防护：耐电压强度大于 4kV，体积阻抗达 10^14 Ω·cm 以上，为精密零件提供极佳的防电击保护。

• 极限耐燃与稳定：符合 UL-94 V-0 最高耐燃等级，且能在 +210°C 高温环境下长期稳定运作。

• 柔软且高韧性：具备 Shore A 50/70 的硬度选择，延伸率达 150% 以上，适合各种异形组件的紧密包覆。

• 全面符合环保标准：材料配方完全符合 RoHS 环保规范，确保绿色制程安全无虞。

【物性参数表】

【产品应用与规格】

• 应用领域：广泛应用于二极管（Diodes）、三极管（Transistors）、电子感应组件及各类精密电器件的包覆与散热保护。

• 标准尺寸：

  • 内径 (Inner Diameter)：0.5 ~ 25 mm

  • 外径 (Outer Diameter)：1.5 ~ 26 mm

  • 厚度 (Thickness)：0.5 mm / 1.2 mm

• 客制化服务：可根据客户特殊应用需求，提供不同尺寸、颜色与物性参数的精密客制化生产。

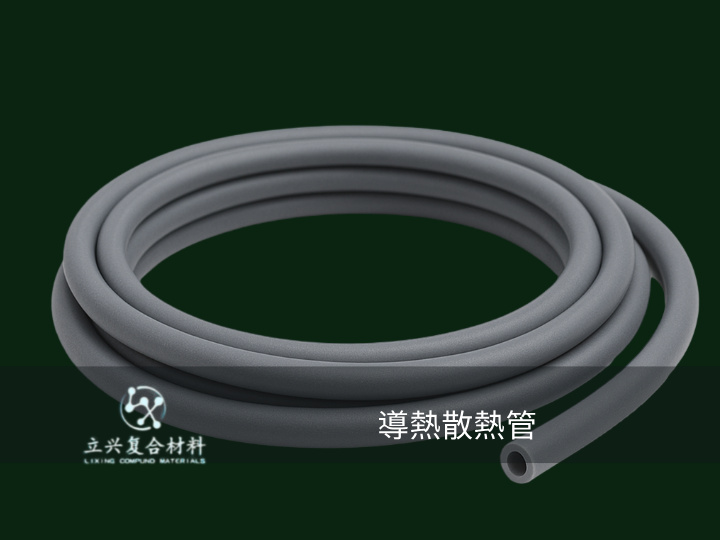

Heat Dissipation Tube: Premium Solution for Thermal & Insulation Protection

In modern precision electronics manufacturing, the Heat Dissipation Tube is a core protective material that ensures the stable operation of power components. The silicone heat dissipation tubes provided by Lixing Compound Material feature exceptional thermal conductivity and high voltage endurance, providing an efficient cooling path for electronic components while ensuring superior electrical insulation and flame-retardant protection.

[Why Choose Our Heat Dissipation Tube?]

• Excellent Thermal Performance: Thermal conductivity reaches 0.8 ~ 1.0 W/m·K, enabling rapid heat transfer from electronic components to prevent overheating.

• High-Specification Insulation: Dielectric strength exceeds 4kV with volume resistivity over 10^14 Ω·cm, providing outstanding electric shock protection for sensitive parts.

• Extreme Flame Retardancy & Stability: Complies with the UL-94 V-0 highest flame rating and operates stably under high temperatures up to +210°C.

• Softness & High Toughness: Available in Shore A 50/70 hardness options with elongation over 150%, making it ideal for wrapping various irregular components.

• Full RoHS Compliance: The material formulation strictly adheres to RoHS environmental standards, ensuring a safe and green manufacturing process.

[Physical Properties]

[Applications & Specifications]

• Applications: Widely used for the encapsulation and thermal protection of diodes, transistors, electronic sensors, and various precision electrical devices.

• Product Dimensions:

  • Inner Diameter: 0.5 ~ 25 mm

  • Outer Diameter: 1.5 ~ 26 mm

  • Thickness: 0.5 mm / 1.2 mm

• Customization Service: Precise customization of sizes, colors, and physical parameters is available based on specific customer application requirements.
