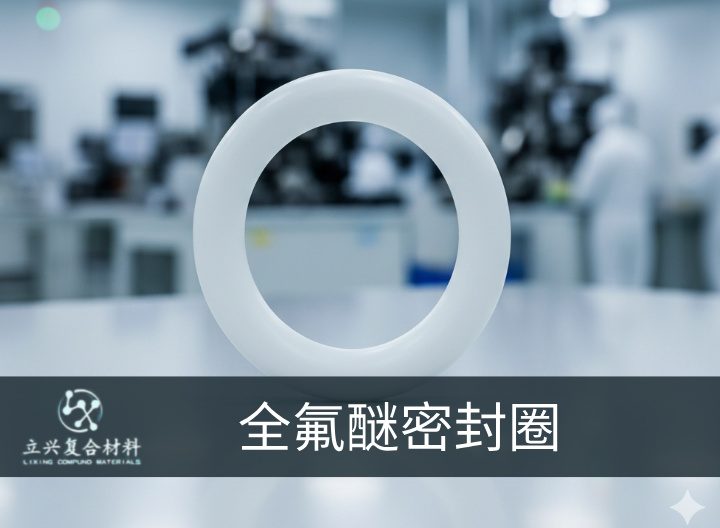

全氟醚密封圈(Perfluoroelastomer O-Ring)

M-FFKM-02 全氟醚密封圈具备卓越的化学稳定性与耐高温特性，最高工作温度可达 320°C。其优异的抗压缩变形能力（300°C 下仅 20%）确保了在极端热循环下的长期密封可靠性，是半导体制程、航太及化工设备等高端密封应用的最佳选择。E

品牌: 立兴复合材料
产地: 广东 · 珠海
供货: 厂家直销，支持定制规格与裁切
样品: 可提供样品，详询业务

电话咨询 13926908508 邮件询价

产品详情

中文描述： M-FFKM-02 全氟醚密封圈具备卓越的化学稳定性与耐高温特性，最高工作温度可达 320°C。其优异的抗压缩变形能力（300°C 下仅 20%）确保了在极端热循环下的长期密封可靠性，是半导体制程、航太及化工设备等高端密封应用的最佳选择。

English Description: The M-FFKM-02 Perfluoroelastomer O-ring offers exceptional chemical stability and high-temperature resistance, with a maximum operating temperature of 320°C. Its superior compression set resistance (only 20% at 300°C) ensures long-term sealing reliability under extreme thermal cycles, making it the premier choice for high-end sealing applications in semiconductor processing, aerospace, and chemical industries.

全氟醚密封圈：极端严苛环境下的卓越密封方案

Perfluoroelastomer (FFKM) O-Ring: Premium Sealing Solution for Extreme Environments

在半导体制程、化学工业与航太科技等严苛环境中，全氟醚密封圈是维持系统密封稳定性的关键组件。立兴复合材料提供的 M-FFKM-02 高性能全氟醚密封材料，完美结合了聚四氟乙烯 (PTFE) 的顶级耐化学性与橡胶的高弹性，能在极端高温与腐蚀性介质中展现卓越的可靠性。

为什么选择立兴全氟醚密封圈？ / Why Choose Our FFKM O-Ring?

M-FFKM-02 系列密封材料专为挑战工业极限而生，解决传统橡胶密封件在极端条件下失效的痛点：

极致耐热性能：可在高达 320°C 的环境下长期稳定运作，满足高温真空与热制程需求。
卓越耐化学性：具备几乎等同于 PTFE 的化学抗性，能抵御酸、碱、溶剂及强氧化剂的侵蚀。
优异压缩永久变形率：在 300°C 高温测试 (70 hrs) 下，压缩变形率仅为 20%，确保密封性能长效不衰。
物理弹性与强度：兼具 75 Shore A 硬度与 17.77 MPa 拉伸强度，提供极佳的结构稳定性与安装弹性。

技术规格与物性特性 / Technical Specifications & Physical Properties

针对高温制程与强腐蚀环境，我们提供以下专业物性参数：

项目 (Property)	参数值 (Value)	测试方法 (Test Method)
产品编号 (Product Code)	M-FFKM-02 系列	—
材质 (Material)	全氟醚橡胶 (FFKM)	—
耐温 (Temp. Resistance)	320°C	—
硬度 (Hardness)	75 Shore A	ASTM D2240
拉伸强度 (Tensile Strength)	17.77 MPa	ASTM D412
拉断伸长率 (Elongation)	135.3%	ASTM D412
压缩变形率 (Set – 200°C)	13% (70 hrs)	ASTM D395
压缩变形率 (Set – 300°C)	20% (70 hrs)	ASTM D395

M-FFKM-02 Perfluoroelastomer O-Ring: High-Performance Sealing Solution

The M-FFKM-02 is a state-of-the-art perfluoroelastomer (FFKM) sealing material developed by Lixing Composite Material for the most demanding industrial applications. It bridges the gap between the chemical inertness of PTFE and the mechanical flexibility of an elastomer, making it the ultimate choice for high-temperature and chemically aggressive environments.

Why Choose the LIXING FFKM O-Ring?

Engineered for industrial extremes, the M-FFKM-02 series addresses critical sealing failures in high-end manufacturing:

Extreme Thermal Stability: Operates reliably in temperatures up to 320°C, suitable for semiconductor and high-heat vacuum processes.
Broad Chemical Compatibility: Offers nearly universal resistance to over 1,800 chemicals, including strong acids, bases, and organic solvents.
Superior Compression Set Performance: Maintains seal integrity with a low compression set of 20% even after 70 hours at 300°C.
Optimized Mechanical Strength: Combines high tensile strength (17.77 MPa) with reliable elongation characteristics for long-term service life.
